Spatial simple random sampling model -- sample with layout
Previous page
Next page

（Vector）


Step 1: specify the file name and the location of storage


  1. Double-click SSSampling. Pop-up under interface:
  2. Select " Having Sampling Data ".
  3. Under "Sample Design": Click on , Choose a suitable file path to save the project files, such as: “sampling project”.
  4. Under "Map of The Region" : Click on , choose the hs_town.shp file.
  5. Under "Sample Site Layer": Click , choose sample site file.
  6. Click “Finish”

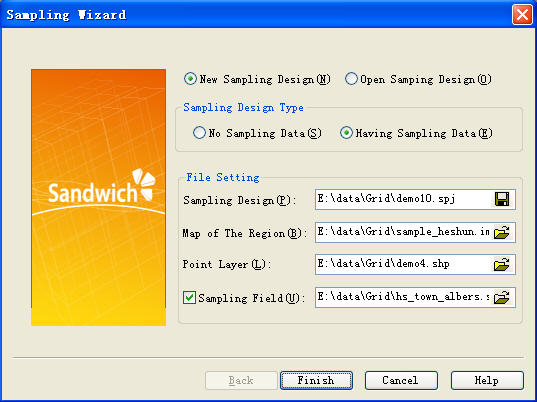

Figure 1. Starting interface

Step 2: Select Model

  1. Select "Spatial random sampling model
  2. Select "Sample Features "
  3. Select "Scale" in the types of sample value(If the samples value feature is the proportion, that is, maximum value less than 1, minimum value greater than 0, select the proportion of value)
  4. Filled out a confidence level 0.95
  5. Click on the "Next ”
Figure 2. Spatial simple random sampling ( sample with layout )

Step 3: Sampling results

  1. Pop-up below dialog

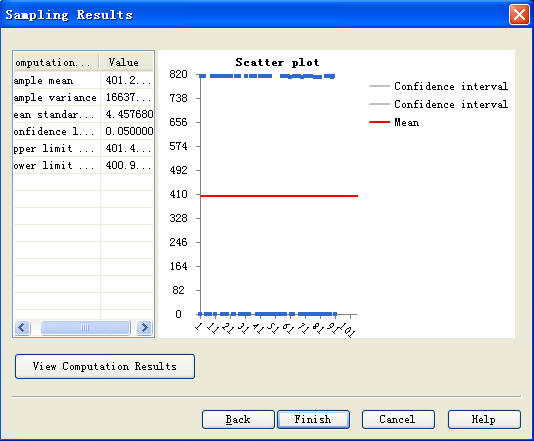

Figure 3. Computation results of spatial simple random sampling
  1. Complete the calculation.
