Spatial stratified model -- sample without layout
Previous page
Next page

（Vector）

Step 1: specify the file name and the location of storage
  1. Double-click SSSampling. Pop-up below interface
Figure 1. Starting interface

  1. Under "Sample Design": Click on , Choose a suitable file path to save the project files, such as: “sampling project”
  2. Under "Map of The Region" : Click on , choose the hs_town.shp file
  3. Under "Sample Site Layer": Click , choose a suitable path and enter the saved sample site file, for example: sampling site
    4. 2 - 4 steps, as shown below:

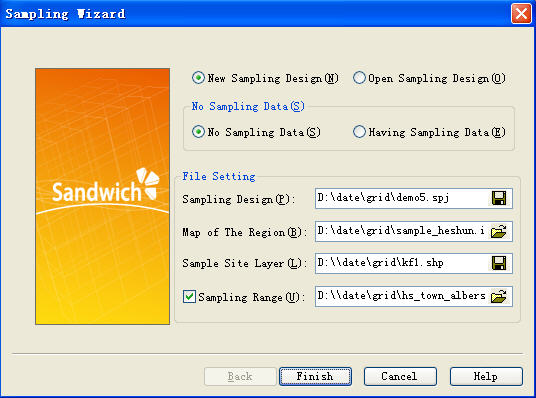

Figure 2. Input the correlative project file
  1. Click on the "Finish"
  2. Note: If at this time a sample range file and the map of the region is area based object, there will be no need to change the sampling range settings. If the map of the region is site based object, then the sampling range should includes the object region for sample site .(for example, the sampling site is samlingframe.shp, the sample range is hs_county.shp).

Step 2: Choose sample model and set up sample region

  1. After the previous step have been completed, click out of the following interface

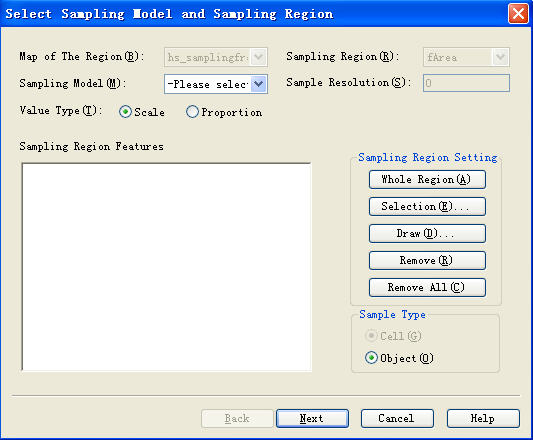

Figure 3. The setting graph of the sampling area
  1. Choose “Spatial stratified model”, pop-up under window:

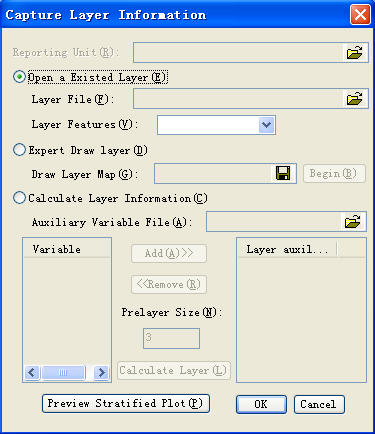

Figure4 Layer setting graph

There are three ways to set up stratification, but only one may be used at a time
i. Open stratification: open the selected the stratification, then click to open the stratification file, pop-up dialog box. The selected stratification file must be the object of the regional set. The stratified region must coincide with the map of the region, then select stratification feature that is, identification of the different stratification features.
ii. Expert drawing stratification: first to create a new file to save the expert drawing stratification. Then click start drawing, the software will return to the map of the region, experts draw the broken line to divide the map of the region into a number of sub-regions. The each of sub-region is a stratum.
iii. Calculating stratification information: select stratification information, open assisted variable information file. According to certain features of the stratification of the file, the features in the table will be added to the right of the window, enter the number of layers before stratification( The default is 3), click the calculation of stratification to obtain the result of stratification.
Click on "Preview Stratified Plot", we can see the result of stratification.

  1. Set sampling resolution as 0.01, move pop-up window, you can see in the middle of map of the region of interest there is a small box, this is the smallest sampling unit based on input sample resolution. According to input different sample resolution, the size of the box will change in real time(if map of the region of interest is site based object, there's no need to set up sampling resolution)
  2. Click "Scale" (or proportion of value determined by target value)
  3. Click “Next”

Step 3: Calculation of sample size
  1. After the previous step have been completed, click out of the following interface
Figure 5. Compute sample size
  1. Input parameters and verify the correctness of the input parameters
  2. Click on the "Compute Sample Size," and obtain the relationship graph between precision and sample size and cost as below
  3. Select a different function, obtain a different sample precision relationship graph
  4. Click on the name of calculation functions, we can see that each function uses different parameters
  5. Select "Proportion", which is the actual number of samples compared to the theoretical value, as shown below

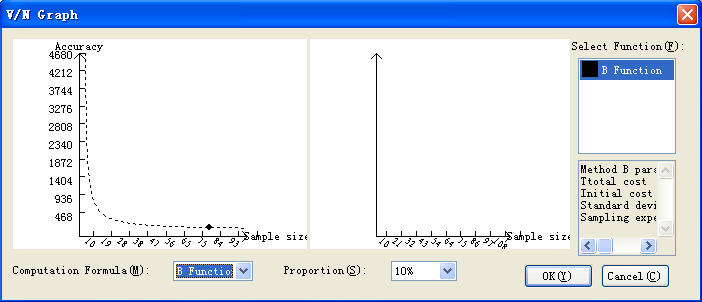

Figure 6. Sample size graph(It is the accuracy-sample size graph on the left, it is the cost-sample size graph on the right, the inputted cost and other parameters can be displayed on the right graph)
  1. Click on “Back” to return the parameters interface, can modify parameters
  2. Click on the "Finish", determined sample function
  3. Back to the design parameter interface, click "Finish", complete sample size calculation and system will generate sample site.

Step 4: Sampling results
  1. Double-clickSSSampling. Pop-up Interface:
  2. Select " Open Sampling Design ", pen the project file which generated in the first step.

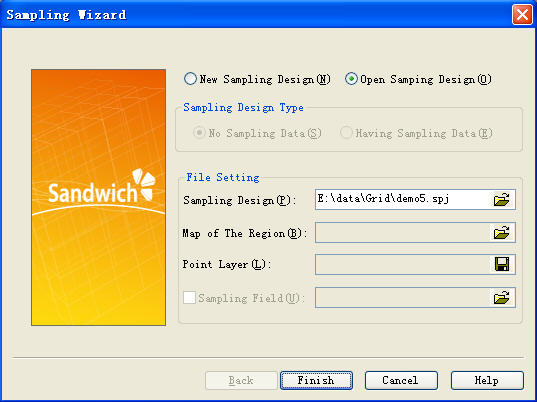

Figure 7. Open a existed project file

  1. Click OK, click out of the pop-up dialog for sample data input
  2. Select "Import from File ”, open the saved data file (the file format is txt), then select the property of the calculation value (generally value)
  3. Or select manually input file, enter value directly under the value field in the form. Then select the property of calculation value
  4. Sampling model has two kinds of situations
    i. Directly click "Next", obtain sampling results
    ii. Select sampling model, and then select spatial random model, get different results. Or choose stratified, spatial stratified and sandwich layered model, this time pop-up dialog box, which need to enter the relevant stratification file(for example: If the data is in order, natural stratification file using stritify.shp, reporting unit using hs_town.shp which only used in the sandwich model).
Figure 8. Input the data
  1. Click “Next”, show up a sampling results map

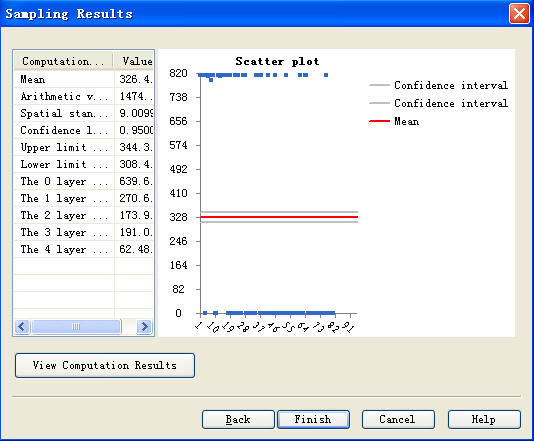

Figure 9 Sampling results
